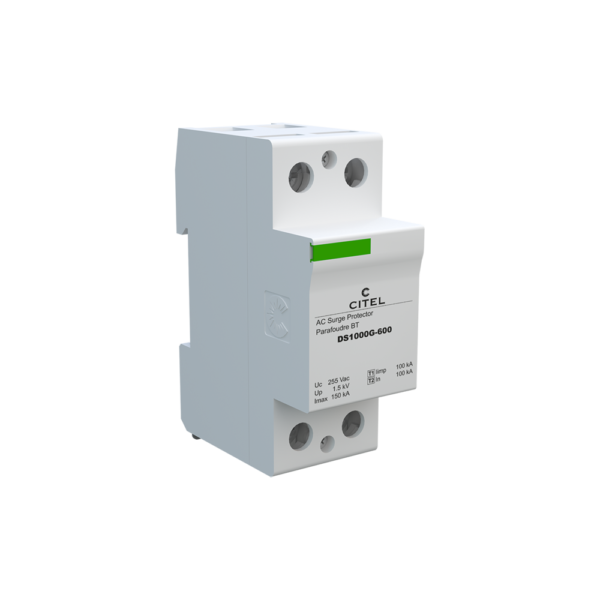

DS1000G-600

– Type 1 N/PE surge protector
– Iimp : 100 kA (10/350µs)
– Imax : 150 kA (8/20µs)
– Compatible with DS250 and DS150 series
– IEC 61643-11 compliance

Kategoriler: DS1000G Serisi Tip 1 N/PE Parafudrlar

Citel model : DS1000G-600

Part Number : 1647

Electrical characteristics

SPD type follow test IEC 61643-11		N/PE
Network		230/400 V
Max. AC operating voltage L-N	Uc	255 Vac
Temporary Over Voltage (TOV) Charasteristics – 5 sec. without disconnection	UT	580 Vac withstand
Temporary Over Voltage (TOV) Charasteristics – 120 mn without disconnection or with safety disconnection	UT	440 Vac withstand
Temporary Over Voltage N/PE (TOV HT) without disconnection or with safety disconnection	UT	1200 V/300A/200 ms withstand
Residual Current LeakAge current at Uc	Ipe	none
Follow current	If	yes
Follow current interrupting capability	Ifi	> 100 A
Nominal discharge current 15 x 8/20 µs impulses	In	100 kA
Max. discharge current max. withstand @ 8/20 µs by pole	Imax	150 kA
Impulse current by pole max. withstand 10/350µs by pole	Iimp	100 kA
Protection level	Up	1,5 kV
Protection level L/PE	Up L/PE	–
Protection level L/N for multipolar surge protector	Up L/N	–

Mechanical characteristics

Connection to Network		By screw terminals : 6-35 mm² / by bus
Format		Monobloc unipolar surge protector
Mounting		Symmetrical rail 35 mm (EN60715)
Housing material		Thermoplastic UL94-V0
Operating temperature		-40/+85°C
Protection rating		IP20
Outdoor application		N
Remote signaling of disconnection		no

Standards compliance

Standards compliance

IEC 61643-11 / EN 61643-11
