DS40 type2 AC surge protector are used mainly for primary protection of single and 3- phase networks at the main electrical panel.
They provide common-mode or common and differential mode.
This SPD is based on high energy varistor equipped with thermal disconnector and failure indicator, to comply with standards.
The DS40 surge protectors are designed to be used in a multipolar configuration to protect single-phase, 3-phase or 3-phase+Neutral AC networks.They are sometimes associated with dedicated N/PE surge protector based on gas tube technology.

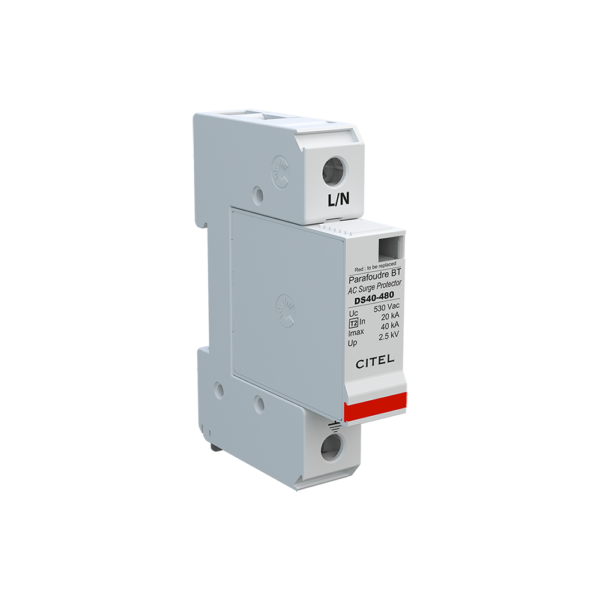

Citel model : DS41-480
Part Number : 331001
| Electrical characteristics |
|---|
| SPD type follow test IEC 61643-11 |
2 | |
| Network |
277/480V | |
| Nominal line voltage |
277 Vac | |
| Max. AC operating voltage L-N |
530 Vac | |
| Max. DC operating voltage |
700 Vac withstand | |
| Temporary Over Voltage (TOV) Charasteristics – 5 sec. without disconnection |
920 Vac disconnection | |
| Temporary Over Voltage (TOV) Charasteristics – 120 mn without disconnection or with safety disconnection |
– | |
| Temporary Over Voltage N/PE (TOV HT) without disconnection or with safety disconnection |
< 1 mA | |
| Residual Current LeakAge current at Uc |
None | |
| Follow current interrupting capability |
20 kA | |
| Nominal discharge current 15 x 8/20 µs impulses |
40 kA | |
| Withstand on Combinaison waveform IEC 61643-11 Class III test: 1.2/50µs – 8/20µs |
25000 A | |
| Max. load current |
L/PE and N/PE | |
| Line inductance |
CM or DM | |
| Connection mode |
2.5 kV | |
| Protection mode(s) |
2.5 kV | |
| Power |
MOV | |
| Life expectancy (before battery replacement) |
1-pole | |
| Type of diagram |
By screw terminals: 2.5-25 mm² / by bus |
| Mechanical characteristics |
|---|
| Technology |
Plug-in modular box | |
| SPD configuration |
Symmetrical rail 35 mm (EN60715) | |
| Connection to Network |
Thermoplastic UL94-V0 | |
| Format |
-40/+85°C | |
| Mounting |
IP20 | |
| Housing material |
No | |
| Wiring mode |
Disconnection | |
| Insulation class |
1 mechanical indicator | |
| Failsafe behavior |
DSM40-480 | |
| Disconnection indicator |
option DS41S-480 : output on changeover contact | |
| Max. number of pairs |
internal | |
| Maximum number of events |
Type `S` or delayed | |
| Display |
Fuses Type gG – 50 A | |
| Insulation material |
– |
| Associated disconnection devices |
|---|
| Thermal disconnector |
IEC 61643-11 / EN 61643-11 / NF EN 61643-11 / UL1449 ed.4 | |
| Installation ground fault breaker |
UL / CSA /GOST |
