DS40VG Type 2 +3 AC surge protector, using CITEL`s `VG technology`, to completely eliminate the leakAge and operation current while providing maximum discharge capacity and an optimized level of protection.
The electric scheme includes a disconnector and its associated indicator ..
The DS40VG surge protectors are designed to be used in a multipolar configuration to protect single-phase, 3-phase or 3-phase+N AC networks.

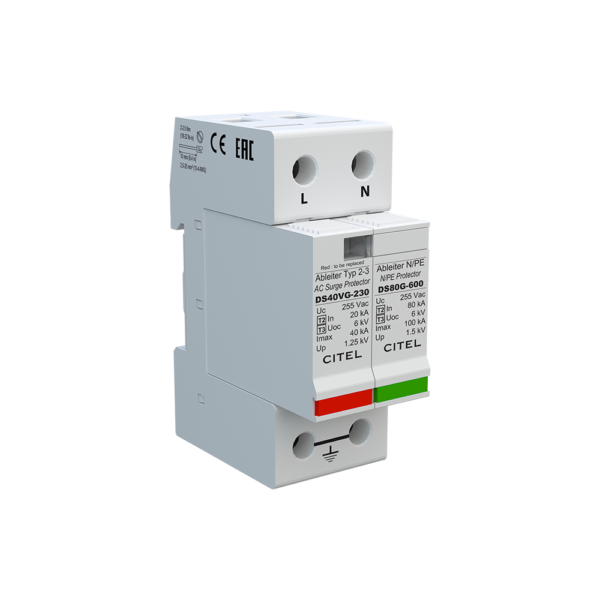

Citel model : DS42VG-230/G
Part Number : 461561
| Electrical characteristics |
|---|
| SPD type follow test IEC 61643-11 |
2+3 | |
| Network |
230 V single-phase | |
| AC system |
TT-TN | |
| Nominal line voltage |
230 Vac | |
| Max. AC operating voltage L-N |
255 Vac | |
| Temporary Over Voltage (TOV) Charasteristics – 5 sec. without disconnection |
580 Vac withstand | |
| Temporary Over Voltage (TOV) Charasteristics – 120 mn without disconnection or with safety disconnection |
440 Vac withstand | |
| Temporary Over Voltage N/PE (TOV HT) without disconnection or with safety disconnection |
1200 V/300A/200 ms withstand | |
| Operating current LeakAge current at Uc |
none | |
| Follow current |
none | |
| Nominal discharge current 15 x 8/20 µs impulses |
20 kA | |
| Max. discharge current max. withstand @ 8/20 µs by pole |
40 kA | |
| Total Maximal discharge current max. total withstand @ 8/20 µs |
80 kA | |
| Withstand on Combinaison waveform IEC 61643-11 Class III test: 1.2/50µs – 8/20µs |
6 kV | |
| Withstand on overvoltages IEEE C62.41.1 |
20 kV | |
| Admissible short-circuit current |
25000 A | |
| Connection mode |
L/N and N/PE | |
| Protection mode(s) |
MC/MD | |
| Protection level @In (8/20µs) between L/PE |
1.5 kV | |
| Residual voltage @ In – 8/20µs waveform |
0.8 kV | |
| Protection level L/PE |
– | |
| Protection level L/N for multipolar surge protector |
1.25 kV |
| Mechanical characteristics |
|---|
| Technology |
VG | |
| SPD configuration |
3-phase | |
| Connection to Network |
By screw terminals: 2.5-25 mm² / by bus | |
| Format |
Plug-in modular box | |
| Mounting |
Symmetrical rail 35 mm (EN60715) | |
| Housing material |
Thermoplastic UL94-V0 | |
| Operating temperature |
-40/+85°C | |
| Protection rating |
IP20 | |
| Outdoor application |
N | |
| Failsafe behavior |
Disconnection | |
| Disconnection indicator |
1 mechanical indicator by pole | |
| Spare module |
DSM40VG-230+DSM80G-600 | |
| Remote signaling of disconnection |
option DS42VGS-230/G : output on changeover contac |
| Associated disconnection devices |
|---|
| Thermal disconnector |
internal | |
| Installation ground fault breaker |
Type `S` or delayed | |
| Fuses |
Fuses type gG – 50 A |
| Standards compliance |
|---|
| Standards compliance | IEC 61643-11 / EN 61643-11 / UL1449 4ed. |
| Certification | EAC |
