used mainly for primary protection of single and 3- phase networks at the main electrical panel.
They provide common-mode or common and differential mode.
This SPD is based on high energy varistor equipped with thermal disconnector and failure indicator, to comply with standards.
The DS40 surge protectors are designed to be used in a multipolar configuration to protect single-phase, 3-phase or 3-phase+Neutral AC networks.They are sometimes associated with dedicated N/PE surge protector based on gas tube technology.

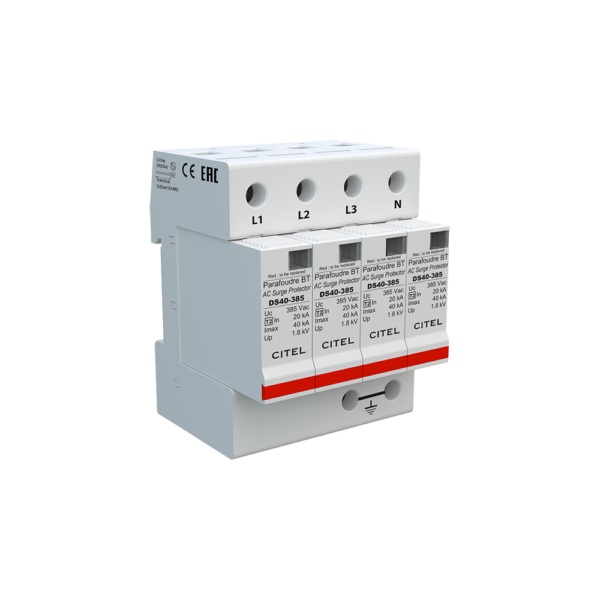

Citel model : DS44-385
Part Number : 461202
| Electrical characteristics |
|---|
| SPD type follow test IEC 61643-11 |
2 | |
| Network |
230/400 V 3-phase+N | |
| AC system |
TNS | |
| Nominal line voltage |
230 Vac | |
| Max. AC operating voltage L-N |
385 Vac | |
| Temporary Over Voltage (TOV) Charasteristics – 5 sec. without disconnection |
580 Vac withstand | |
| Temporary Over Voltage (TOV) Charasteristics – 120 mn without disconnection or with safety disconnection |
440 Vac disconnection | |
| Temporary Over Voltage N/PE (TOV HT) without disconnection or with safety disconnection |
– | |
| Operating current LeakAge current at Uc |
< 1 mA | |
| Follow current |
none | |
| Nominal discharge current 15 x 8/20 µs impulses |
20 kA | |
| Max. discharge current max. withstand @ 8/20 µs by pole |
40 kA | |
| Total Maximal discharge current max. total withstand @ 8/20 µs |
160 kA | |
| Admissible short-circuit current |
25000 A | |
| Connection mode |
L/PE and N/PE | |
| Protection mode(s) |
MC | |
| Protection level @In (8/20µs) and @ 6kV (1.2/50µs) |
1.8 kV | |
| Protection level L/PE |
1.8 kV | |
| Protection level L/N for multipolar surge protector |
– |
| Mechanical characteristics |
|---|
| Technology |
MOV | |
| SPD configuration |
3-phase+Neutral | |
| Connection to Network |
By screw terminals: 2.5-25 mm² / by bus | |
| Format |
Plug-in modular box | |
| Mounting |
Symmetrical rail 35 mm (EN60715) | |
| Housing material |
Thermoplastic UL94-V0 | |
| Operating temperature |
-40/+85°C | |
| Protection rating |
IP20 | |
| Outdoor application |
N | |
| Failsafe behavior |
Disconnection | |
| Disconnection indicator |
1 mechanical indicator by pole | |
| Spare module |
DSM40-385 | |
| Remote signaling of disconnection |
option DS44S-385 : output on changeover contact |
| Associated disconnection devices |
|---|
| Thermal disconnector |
internal | |
| Installation ground fault breaker |
Type `S` or delayed | |
| Fuses |
Fuses type gG – 50 A |
| Standards compliance |
|---|
| Standards compliance | IEC 61643-11 / EN 61643-11 / UL1449 4ed. |
| Certification | EAC |
