DS70R type 2 AC surge protector are used mainly for primary protection of single and three-phase networks at the main electrical panel.
They provide common-mode protection and are available in one-phase, single-phase, 3-phase and 3-phase+Neutral.
This SPD is based on association of high energy varistors equipped with thermal disconnector and failure indicator, to comply with standards.
The DS70R surge protectors are designed to be used in a multipolar configuration to protect single-phase, 3-phase or 3-phase+N AC networks. Each pole of the SPD is connected between Line(s) and PE and Neutral and PE.

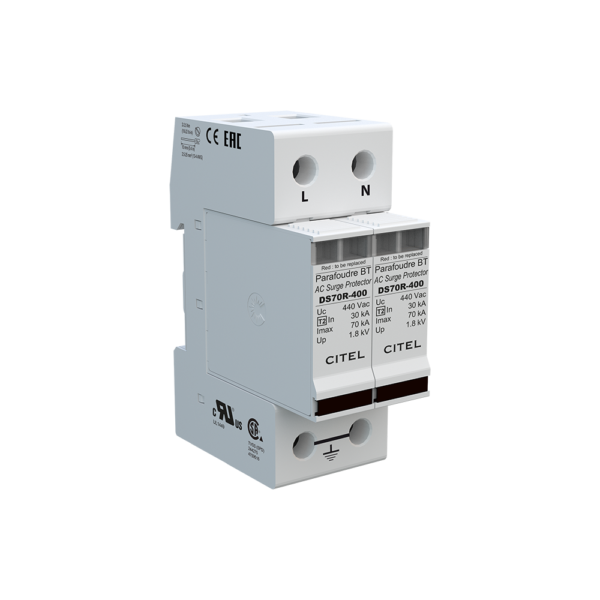

Citel model : DS72R-400
Part Number : 491401
| Electrical characteristics |
|---|
| SPD type follow test IEC 61643-11 |
2 | |
| Network |
230 V single-phase | |
| AC system |
IT | |
| Nominal line voltage |
400 Vac | |
| Max. AC operating voltage L-N |
440 Vac | |
| Temporary Over Voltage (TOV) Charasteristics – 5 sec. without disconnection |
580 Vac withstand | |
| Temporary Over Voltage (TOV) Charasteristics – 120 mn without disconnection or with safety disconnection |
770 Vac disconnection | |
| Operating current LeakAge current at Uc |
< 1 mA | |
| Follow current |
none | |
| Nominal discharge current 15 x 8/20 µs impulses |
30 kA | |
| Max. discharge current max. withstand @ 8/20 µs by pole |
70 kA | |
| Total Maximal discharge current max. total withstand @ 8/20 µs |
140 kA | |
| Admissible short-circuit current |
25000 A | |
| Connection mode |
L/PE and N/PE | |
| Protection mode(s) |
MC | |
| Protection level @In (8/20µs) between L/PE |
1.8 kV | |
| Residual voltage at 10 kA AC |
1.4 kV | |
| Residuel voltage at 5 kA AC |
1.2 kV | |
| Protection level L/PE |
1.8 kV | |
| Protection level L/N for multipolar surge protector |
– |
| Mechanical characteristics |
|---|
| Technology |
MOV | |
| SPD configuration |
Single phase | |
| Connection to Network |
By screw terminals: 2.5-25 mm² / by bus | |
| Format |
Plug-in modular box | |
| Mounting |
Symmetrical rail 35 mm (EN60715) | |
| Housing material |
Thermoplastic UL94-V0 | |
| Operating temperature |
-40/+85°C | |
| Protection rating |
IP20 | |
| Outdoor application |
N | |
| Failsafe behavior |
Disconnection | |
| Disconnection indicator |
2 mechanical indicators by pole | |
| Spare module |
DSM70R-400 | |
| Remote signaling of disconnection |
option DS72RS-400 : output on changeover contact |
| Associated disconnection devices |
|---|
| Thermal disconnector |
internal | |
| Installation ground fault breaker |
Type `S` or delayed | |
| Fuses |
Fuses Type gG – 100 A |
| Standards compliance |
|---|
| Standards compliance | IEC 61643-11 / EN 61643-11 / UL1449 4ed. |
| Certification | UL / CSA /EAC |
