CITEL M50’s compact, low profi le surge protectors are designed to protect local distribution panels, OEM control panels, PLC’s, and SCADA systems against transient surge events.
These devices are installed parallel to the AC network and provide robust surge handling capability. The M50 is available up to three phase applications and is rated at 50kA (8/20μs) transient amps per phase.

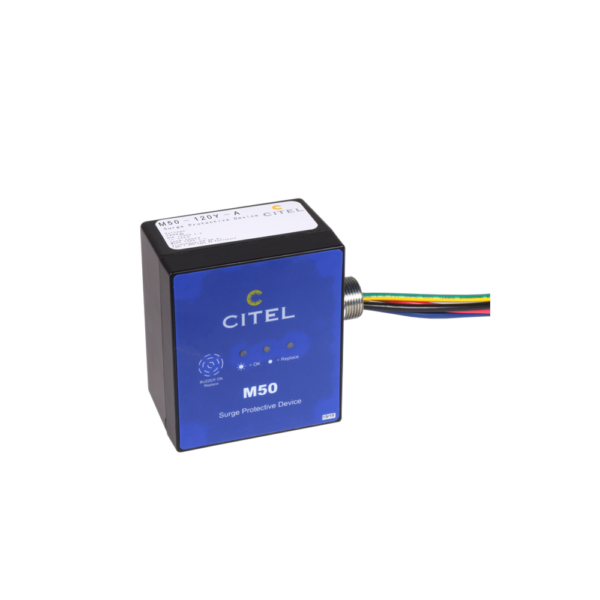

Citel model : M50F-120Y-A
Part Number : 750101
| Electrical characteristics |
|---|
| SPD type follow test IEC 61643-11 |
2 | |
| Network |
120/208 V 3-phase | |
| Nominal line voltage |
120 Vac | |
| Max. AC operating voltage L-N |
150 Vac | |
| Max. AC operating voltage |
150 Vac | |
| Temporary Over Voltage (TOV) Charasteristics – 5 sec. without disconnection |
180 Vac withstand | |
| Temporary Over Voltage (TOV) Charasteristics – 120 mn without disconnection or with safety disconnection |
230 Vac disconnection | |
| Operating current LeakAge current at Uc |
none | |
| Follow current |
none | |
| Nominal discharge current 15 x 8/20 µs impulses |
20 kA | |
| Max. discharge current max. withstand @ 8/20 µs by pole |
50 kA | |
| Total Maximal discharge current max. total withstand @ 8/20 µs |
50 kA | |
| Admissible short-circuit current |
100 kA | |
| Protection level |
1200 V | |
| Protection level at 3 kA 8/20µs waveform- 3 kA |
700 Vac | |
| Protection level L/PE |
1200 V | |
| Protection level L/N for multipolar surge protector |
1200 V |
| Mechanical characteristics |
|---|
| SPD configuration |
3-phase | |
| Connection to Network |
wire 15 AWG (1.5 mm²). long. 600 mm | |
| Mounting |
Bulkhead (3/4`) | |
| Housing material |
Stainless steel | |
| Operating temperature |
-40/+85°C | |
| Protection rating |
IP66 | |
| Disconnection indicator |
Led OFF + audible alarm |
| Associated disconnection devices |
|---|
| Thermal disconnector |
internal | |
| Installation ground fault breaker |
Type `S` or delayed | |
| Fuses |
40 A |
| Standards compliance |
|---|
| Standards compliance | IEC 61643-11 / EN 61643-11 / UL1449 4ed. |
