MSB10 surge protectors Type 2 (or 3) are designed for effective protection of sensitive equipment, in addition to the surge protector installation (coordination surge protector).
These surge protectors utilize a compact and economica scheme based varistors, to obtain a power flow relevant for secondary protection.
Available in screw terminal or wires.

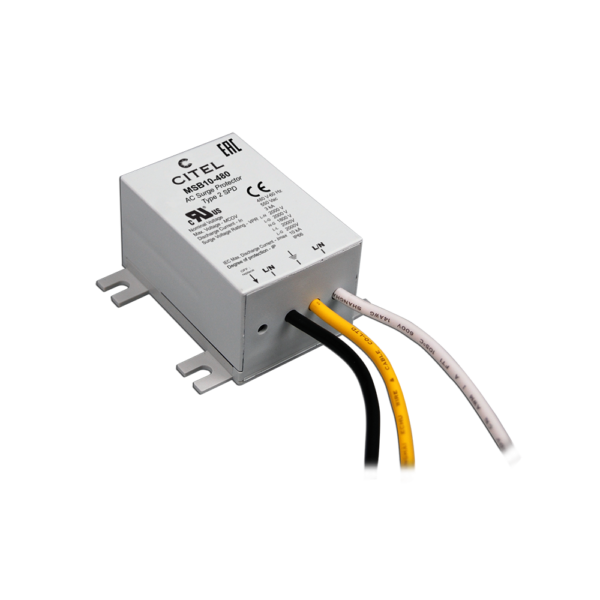

Citel model : MSB10-480(UL)
Part Number : 561801
| Electrical characteristics |
|---|
| SPD type follow test IEC 61643-11 |
3 | |
| Network |
347-480 Vac single-phase | |
| AC system |
TT/TN | |
| Nominal line voltage |
480 V | |
| Max. AC operating voltage L-N |
550 Vac | |
| Temporary Over Voltage (TOV) Charasteristics – 5 sec. without disconnection |
700 Vac w | |
| Temporary Over Voltage (TOV) Charasteristics – 120 mn without disconnection or with safety disconnection |
915 Vac disconnection | |
| Operating current LeakAge current at Uc |
< 1 mA | |
| Follow current |
none | |
| Nominal discharge current 15 x 8/20 µs impulses |
3 kA | |
| Max. discharge current max. withstand @ 8/20 µs by pole |
10 kA | |
| Withstand on Combinaison waveform IEC 61643-11 Class III test: 1.2/50µs – 8/20µs |
6 kV | |
| Withstand on overvoltages IEEE C62.41.1 |
10 kV/10 kA | |
| Admissible short-circuit current |
10 000 A | |
| Protection mode(s) |
MC/MD | |
| Protection level |
1.8 kV | |
| Protection level CM/DM @In (8/20µs) and @ 6kV (1.2/50µs) |
2 kV/2 kV | |
| Protection level L/PE |
1.8 kV | |
| Protection level L/N for multipolar surge protector |
1.8 kV |
| Mechanical characteristics |
|---|
| Technology |
MOV | |
| Connection to Network |
wires | |
| Mounting |
Wall or plate | |
| Housing material |
Thermoplastic UL94-V0 | |
| Operating temperature |
-40/+85°C | |
| Protection rating |
IP66 | |
| Failsafe behavior |
Disconnection | |
| Disconnection indicator |
Green led OFF | |
| Voltage/operating indicator |
Green Led ON |
| Associated disconnection devices |
|---|
| Thermal disconnector |
internal | |
| Installation ground fault breaker |
Type `S` or delayed |
| Standards compliance |
|---|
| Standards compliance | IEC 61643-11 / EN 61643-11 / UL1449 4ed. |
| Certification | UL / EAC |
