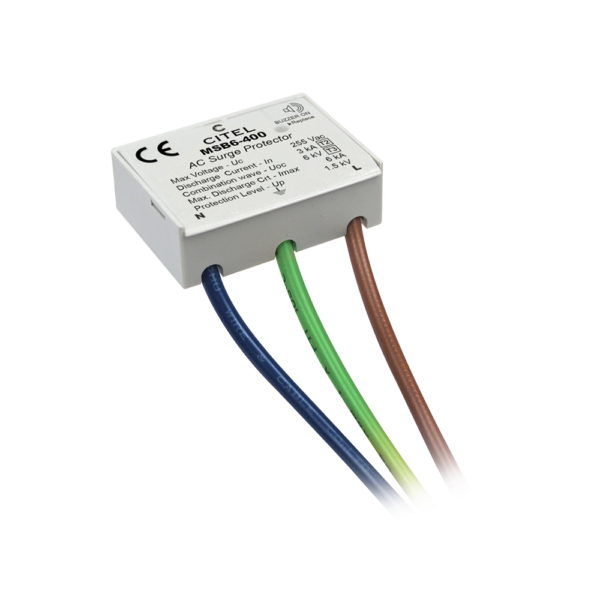

MSB6 surge protectors Type 2 (or 3) are designed for effective protection of sensitive equipment, in addition to the surge protector installation (coordination surge protector).
These surge protectors utilize a ultra compact and economica scheme based varistors, to obtain a power flow relevant for secondary protection.
The operating condition of the arrester is signaled by buzzer.
Citel model : MSB6-400
Part Number : 561302
| Electrical characteristics |
|---|
| SPD type follow test IEC 61643-11 |
3 | |
| Network |
230 V single-phase | |
| AC system |
TT-TN | |
| Nominal line voltage |
230 V | |
| Max. AC operating voltage L-N |
255 Vac | |
| Temporary Over Voltage (TOV) Charasteristics – 5 sec. without disconnection |
580 Vac withstand | |
| Temporary Over Voltage (TOV) Charasteristics – 120 mn without disconnection or with safety disconnection |
440 Vac disconnection | |
| Operating current LeakAge current at Uc |
none | |
| Follow current |
none | |
| Nominal discharge current 15 x 8/20 µs impulses |
3 kA | |
| Max. discharge current max. withstand @ 8/20 µs by pole |
6 kA | |
| Withstand on Combinaison waveform IEC 61643-11 Class III test: 1.2/50µs – 8/20µs |
6 kV | |
| Withstand on overvoltages IEEE C62.41.1 |
6 kV/6 kA | |
| Admissible short-circuit current |
3 000 A | |
| Max. load current |
– | |
| Protection mode(s) |
MC/MD | |
| Protection level |
1.5 kV | |
| Protection level CM/DM @In (8/20µs) and @ 6kV (1.2/50µs) |
1.5 kV/1.5 kV | |
| Protection level L/PE |
1.5 kV | |
| Protection level L/N for multipolar surge protector |
1.5 kV |
| Mechanical characteristics |
|---|
| Technology |
MOV+GDT | |
| Connection to Network |
wires | |
| Mounting |
AC outlet or screw terminal | |
| Housing material |
Thermoplastic UL94-V0 | |
| Operating temperature |
-40/+85°C | |
| Protection rating |
IP20 | |
| Failsafe behavior |
Disconnection | |
| Disconnection indicator |
buzzer ON | |
| Voltage/operating indicator |
without |
| Associated disconnection devices |
|---|
| Thermal disconnector |
internal | |
| Installation ground fault breaker |
Type `S` or delayed |
| Standards compliance |
|---|
| Standards compliance | IEC 61643-11 / EN 61643-11 / UL1449 4ed. |
| Certification | EAC |
